Karyotype uniformity in populations of the endemic Hemiancistrus fuliginosus (Loricariidae: Hypostomini) collected in the upper and middle Uruguai River

Jocicléia Thums Konerat¹, Vanessa Bueno², Ana Luiza de Brito Portela-Castro³, Isabel Cristina Martins-Santos³ and Vladimir Pavan Margarido¹

PDF: EN    XML: EN | Cite this article

Abstract​

Introduction​

The Uruguai River basin comprises an area of approximately 365,000 km², of which 176,000 km² are located in Brazilian territory. The Uruguai River is formed by the confluence of the Pelotas and Canoas Rivers, and is subdivided into three regions: upper Uruguai River, middle Uruguai River, and lower Uruguai River (Zaniboni-Filho, Schulz, 2003). The Yucumã waterfall, an important longitudinal waterfall that extends over 1.8 km along the Uruguai River, delimits the upper Uruguai River from the middle Uruguai River (Zaniboni-Filho, Schulz, 2003; Abell et al., 2008), while the Salto Grande is the boundary between the middle and lower Uruguai River (Zaniboni-Filho, Schulz, 2003). The Uruguai River, in Brazilian territory, flows over the basalts of the Serra Geral Formation to the triple border with Uruguay and Argentina (Latrubesse et al., 2005). Hahn, Camara (2000) recorded approximately 250 species of fish in the Uruguai River basin. Through an inventory of the Uruguai River basin in Brazilian territory, Bertaco et al. (2016) point out 275 species, 25 being described for the first time, with a record of 78 endemic species, some belonging to the critically endangered, endangered, or vulnerable categories.

Loricariidae presents several taxonomic problems, being a specious family with 1,064 species (Armbruster et al., 2015; Lujan et al., 2015; Fricke et al., 2024) allocated into six subfamilies according to morphological characters (Armbruster, 2004; Reis et al., 2006), and with changes in subfamily status for some groups by molecular data (Lujan et al., 2015). The molecular studies by Lujan et al. (2015) reorganized Hypostominae into nine tribes or clades (six clades and three tribes), with several Ancistrini species relocated to different clades, data corroborated by molecular analyzes of the high-throughput sequencing of ultraconserved elements (UCES) made by Roxo et al. (2019).

Due to the morphological plasticity of loricariids, Armbruster et al. (2015) used molecular phylogeny (Lujan et al., 2015) and collated with morphological data to review the genera Hemiancistrus Bleeker, 1862 and Peckoltia Miranda Ribeiro, 1912; these results partially diverge from exclusively morphological (Armbruster, 2004) or molecular (Lujan et al., 2015) studies.

Armbruster et al. (2015) maintain several species without reliable morphological characters in Ancistrini, recognizing three groups. In ‘Hemiancistrus’ chlorostictus Cardoso & Malabarba, 1999, species from southern Brazil and Uruguai are allocated until their relationships can be better examined. For Hemiancistrus, only the type-species Hemiancistrus medians (Kner, 1854) is considered valid (Armbruster et al., 2015), with the other species distributed to other clades/groups in Ancistrini or Hypostomini. In the absence of consensus between morphological and molecular analyzes (Armbruster et al., 2015; Lujan et al., 2015; Roxo et al., 2019), such divergences could be elucidated using other markers to resolve this conflict. Cytogenetic analysis in H. fuliginosus Cardoso & Malabarba, 1999, together with data from published molecular and morphological phylogenetic analyses, is proposed to try to fill gaps in the chromosomal evolution of the subfamily.

Material and methods

Sampling sites. Specimens of H. fuliginosus were collected from tributaries of the upper and middle Uruguai River and deposited in the Ichthyological Collection of the Núcleo de Pesquisas em Limnologia, Ictiologia e Aquicultura (Nupélia), Universidade Estadual de Maringá (NUP): 8 specimens (6 females and 2 males, NUP 14826) from the Cascalho Stream (Mondaí, SC – 27°02’48.2”S 53°25’17.8”W), 15 specimens (6 females and 9 males, NUP 14828) from the Antas River (Mondaí, SC –27°05’17.3”S 53°23’40.2”W), 13 specimens (2 females and 11 males, NUP 15021) from the Potiribu River (Ijuí, RS – 28°20’31.3”S 53°53’34.6”W) and 41 specimens (24 females and 17 males, NUP 14827) of the Ijuí River (Ijuí, RS – 28°18’06.3”S 53°53’33.6”W), with Cascalho Stream and Antas River belonging to the upper Uruguai River, and Potiribu River and Ijuí River to the middle Uruguai River (Fig. 1).

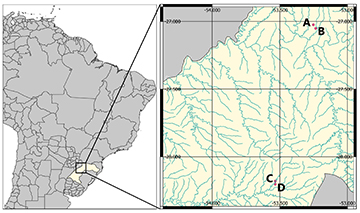

FIGURE 1| Collection sites of Hemiancistrus fuliginosus in the tributaries of the Uruguai River: upper Uruguai River: A. Cascalho Stream and B. Antas River; middle Uruguai River: C. Ijuí River and D. Potiribu River.

Cytogenetic analyses. The animals were anesthetized and euthanized by clove oil overdose (Griffths, 2000). Metaphase cells were obtained using the technique proposed by Bertollo et al. (1978). According to Levan et al. (1964), chromosomes were classified as metacentric (m), submetacentric (sm), subtelocentric (st), and acrocentric (a). NORs were evidenced by silver impregnation according to the technique described by Howell, Black (1980). Heterochromatin was located by C-banding as proposed by Sumner (1972), with modifications suggested by Lui et al. (2012). Fluorochrome staining with Chromomycin A₃ (CMA₃) and 4’, 6-diamidino-2-phenylindole (DAPI) followed the protocol described by Schweizer (1980). Physical mapping of the 5S rDNA and 18S rDNA sequences was performed by fluorescent in situ hybridization (FISH) according to Pinkel et al. (1986) with modifications suggested by Margarido, Moreira-Filho (2008), with DNA probes obtained from Megaleporinus elongatus (Valenciennes, 1850) (Martins, Galetti Jr., 1999) and Prochilodus argenteus Spix & Agassiz, 1829 (Hatanaka, Galetti Jr., 2004), respectively. Probes were labeled by nick translation with digoxigenin-11-dUTP (5S rDNA) and biotin-16-dUTP (18S rDNA) (Roche®). Signal detection was performed with antidigoxigenin-rhodamine (Roche®) for the 5S rDNA probe and avidin-FITC amplified with biotinylated anti-avidin (Sigma – Aldrich) for the 18S rDNA probe, and the chromosomes were subsequently counterstained with DAPI (50 µg/mL). Metaphases were photographed using the BX 61 epifluorescence microscope and an Olympus DP 71 digital camera with the DP Controller 3.2.1.276 software.

Results​

The four populations of H. fuliginosus presented 2n = 56 chromosomes (30m + 18sm + 6st + 2a), with no differences between males and females (Fig. 2). Simple NORs (AgNORs and 18S rDNA-FISH) were observed for all analyzed populations, located on the short arm of the subtelocentric chromosome pair 25. In the populations of the Cascalho Stream, Potiribu River, Ijuí River and Antas River, the NORs were located in terminal position (Fig. 2). Heterochromatin was evidenced in the centromeric position of almost all chromosomes, being more evident coincident with NORs, in the interstitial position of the long arm and pericentromeric position of the short arm of the metacentric chromosome pair 1, in the terminal position of the long arm of the acrocentric chromosome pair 28 and the pericentromeric position of the short arm of the metacentric chromosome pair 12 for the four populations analyzed (Fig. 2). Regarding the 5S rDNA, sites were detected only in the pericentromeric position on the short arm of the 12 metacentric chromosome pair in the four populations analyzed (Fig. 3). Analysis by base-specific fluorochromes showed that the heterochromatin associated with the rDNA regions are CMA₃⁺/DAPI^– in all analyzed populations (Fig. 4).The population of Antas River showed polymorphism in the location of NORs sites, with three different phenotypes being observed: seven individuals had both chromosomes carrying terminal NORs (t/t); seven individuals had one chromosome with interstitial NORs and the other chromosome of the pair with terminal NORs (i/t), and one individual had both chromosomes with interstitial NORs (i/i) (Fig. 4). This polymorphism lies in Hardy-Weinberg Equilibrium (χ² = 0.186; 0.95 > p > 0.90; Tab. 1).

FIGURE 2| Karyotypes of Hemiancistrus fuliginosus stained by Giemsa (A–D) and C-banded (E–H). AgNORs are highlighted in the boxes. Cascalho Stream (A and E), Ijuí River (B and F), Antas River (C and G) and Potiribu River (D and H). Scale bar = 5µm.

FIGURE 3| Karyotypes of Hemiancistrus fuliginosus submitted to fluorescent in situ hybridization with 5S (red) and 18S (green) rDNA probes, counterstained with DAPI, highlighting chromosome pairs 12 and 25 stained with CMA₃/DAPI: A. Cascalho Stream, B. Antas River, C. Ijuí River and D. Potiribu River. Scale bar = 5µm.

FIGURE 4| Three phenotypes of the NOR-bearing pair (pair 25) observed in Hemiancistrus fuliginosus from Antas River: stained by Giemsa, Ag-staining, C-banded, stained with CMA₃/DAPI and subjected to fluorescent in situ hybridization with rDNA probes 18^th patterns: terminal/terminal (t/t), interstitial/terminal (i/t) and interstitial/interstitial (i/i). Scale bar = 5µm.

TABLE 1 | Chi-Square test for the three phenotypes of the NOR-bearing pair (pair 25) observed in Hemiancistrus fuliginosus from Antas River. O = observed; E = expected; t/t = terminal/terminal; i/t = interstitial/terminal; i/i = interstitial/interstitial.

Discussion​

The phylogenetic relationships within Hypostominae have been debated by different authors, who used different tools (morphological and molecular analyses) to elaborate different proposals (Armbruster et al., 2004, 2015; Lujan et al., 2015; Roxo et al., 2019). Among the existing divergences that appeared among the proposed phylogenies, some are related to the relocation of Ancistrini and Pterygoplichthini species. While cytogenetic analyses provide too little characters to allow the elaboration of a new phylogenetic proposal, the existent phylogenies offer clues to better understand the mechanisms that occurred in the chromosome evolution.

Hemiancistrus has 12 described species (Fricke et al., 2024). According to Armbruster et al. (2015), Hemiancistrus likely contains only the type-species Hemiancistrus medians, and new genera would be required to allocate other species groups that are currently allocated in this genus, with H. fuliginosus considered a member of the ‘Hemiancistrus’ chlorostictus group in Ancistrini (Armbruster et al., 2015). Morphological studies show that H. fuliginosus belongs to Hemiancistrus, basal in Ancistrini (Armbruster, 2004), while the molecular data allocate it in Hypostomini (Lujan et al., 2015). Morphological studies carried out by Provenzano, Barriga (2017) using the type species Hemiancistrus medians for the description and revision of species, show divergences in identifying species already described in Hemiancistrus. The authors also suggest revision based on the similarities between Hemiancistrus and the representatives of the Hypostomini tribe.

Due to the discrepancy between the morphological and molecular data presented in Hypostominae, it is interesting to use other markers to better solve this conflict. Similar problems were elucidated by including cytogenetic markers in the analyzes (Artoni, Bertollo, 2001; Bueno et al., 2012, 2014; Konerat et al., 2014a).

Chromosomal evolution in Ancistrini and Hypostomini presents different mechanisms. Ancistrini shows a reduction in the number of chromosomes (Alves et al., 2003), with records of 34 to 54 chromosomes (Mariotto et al., 2011), while Hypostomini shows an increase in the number of chromosomes (Artoni, Bertollo, 2001), ranging from 54 to 84 chromosomes (Muramoto et al., 1968; Cereali et al., 2008). Cytogenetic studies in Pterygoplichthys Gill, 1858 and Hemiancistrus species with divergent allocation show 2n = 52 chromosomes in Pterygoplichthys (Alves et al., 2006; Fernandes et al., 2015; Bueno et al., 2018) and Hemiancistrus (Artoni, Bertollo, 2001; Oliveira et al., 2006), except for H. fuliginosus with 2n = 56 chromosomes (Ribeiro et al., 2024).

Analyzing the morphological proposals (Armbruster, 2004) with the molecular proposal of Lujan et al. (2015) and Roxo et al. (2019), in combination with the chromosomal data of Hypostomini and Ancistrini, it is possible to verify divergences of the proposals regarding the positioning of H. fuliginosus in Ancistrini. The allocation of H. fuliginosus in Hypostomini, as proposed by Lujan et al. (2015) and de Roxo et al. (2019) is reinforced by the pattern of chromosomal evolution. It is interesting to note that Armbruster et al. (2015) also mention that the molecular phylogeny currently offers the bast case for handling this group.

The molecular analysis by Lujan et al. (2015) relocates some Hemiancistrus species to Hypostomini. The authors proposed Pterygoplichthys occupying a basal position, followed by Hemiancistrus and Hypostomus Lacepède, 1803. In this molecular analysis, Hemiancistrus species are allocated in three distinct clades: the ‘Peckoltia’ clade, with Hemiancistrus landoni Eigenmann, 1916; the ‘Hemiancistrus’ clade, containing the genera Baryancistrus Rapp Py-Daniel, 1989, Hemiancistrus, Spectrachanticus Nijssen & Isbrücker, 1987 (cited as Oligancistrus), Parancistrus Bleeker, 1862 and Panaque Eigenmann & Eigenmann, 1889; and the clade corresponding to the tribe Hypostomini, also composed of Pterygoplichthys and Hypostomus, which contains species of Hemiancistrus found in northern South America and restricted to the Uruguai River basin (i.e., H. fuliginosus and H. votouro Cardoso & da Silva, 2004) (Lujan et al., 2015). A study based on molecular analyzes on nuclear and mitochondrial genes performed in Hypostomus also suggest this position occupied by Pterygoplichtys and Hemiancistrus in Hypostomini (Cardoso et al., 2012).

The molecular studies by Roxo et al. (2019) using the UCES resulted in a clade for Loricariidae, with Hypostomini showing the genera Pterygoplichthys, Hypostomus, and three species of ‘Hemiancistrus’ (‘H.’ fuliginosus, ‘H.’ punctulatus Cardoso & Malabarba, 1999 and ‘H.’ cerrado de Souza, Melo, Chamon & Armbruster, 2008). Using the proposal by Roxo et al. (2019), in association with cytogenetic data of the species allocated in Hypostomini, the basal diploid number would change from 54 chromosomes (Muramoto et al., 1968) to 52 chromosomes in Pterygoplichthys (Fernandes et al., 2015; Bueno et al., 2018), with the highest diploid number of 84 chromosomes in Hypostomus perdido Zawadzki, Tencatt & Froehlich, 2014 (Cereali et al., 2008). Chromosomal evolution in Hypostomini has been mainly attributed to the increase in the number of chromosomes, that is, chromosomal rearrangements involved are mainly fission-like (Artoni, Bertollo, 2001). Considering the diploid number 2n = 52 chromosomes plesiomorphic for the tribe (Bueno et al., 2018) and cytogenetic data from this study, it is possible to suggest the occurrence of centric fissions responsible for the elevation of the diploid number in H. fuliginosus. Thus, the mechanisms involved in the increase in diploid number in Hypostomini are also verified in Hemiancistrus.

Data concerning heterochromatin distribution are lacking for the Hemiancistrus species allocated to Hypostomini. The checked pattern for H. fuliginosus shows pale centromeric heterochromatin and the presence of some conspicuous heterochromatic blocks coincident with the rDNA sites (5S and 18S) that show GC-rich nature. The GC-rich nature pattern coincident with rDNAs is also recorded for Hypostomus (Bueno, 2014), and it may be a shared trait in Hypostomini.

Physical mapping of 5S and 18S ribosomal genes has been used in Hypostominae as an important cytogenetic tool for evolutionary discussions (Mariotto et al., 2011; Baumgartner et al., 2014; Bueno et al., 2014), with single and multiple 5S and 18S rDNA cistrons being recorded for Hypostomini (Bueno et al., 2014). For H. fuliginosus, the first physical mapping data of rDNA are described, with the description of single cistrons of 5S and 18S rDNA in pericentromeric and terminal positions, respectively. Other rDNA data for Hypostomini show that P. ambrosettii (Holmberg, 1893) presents single cistrons of 5S and 18S rDNA in synteny (Bueno et al., 2018). The cytogenetic data of P. ambrosettii (2n = 52 and rDNA single cistrons in synteny, Bueno et al., 2018), (2n = 52 and simple AgNORs, Fernandes et al., 2015, cited as P. anisitsi) and H. fuliginosus (2n = 56 and rDNA single and independent cistrons, this study), strengthens the involvement of fissions in the chromosomal evolution of the tribe (Artoni, Bertollo, 2001). These chromosome fissions would have caused an increase in the diploid number (2n = 52 to 56 chromosomes) and may be related to the loss of rDNA synteny observed in H. fuliginosus.

The diploid number, the location of the 5S and 18S rDNA single cistrons, and the nature of the heterochromatin coincident with the rDNA sites of H. fuliginosus (this study) associated with those of P. ambrosettii (Bueno et al., 2018) contribute to filling the gap of cytogenetic data in Hypostomini. These markers corroborate the events already proposed for chromosomal evolution (Artoni, Bertollo, 2001) as well as the proposal of Lujan et al. (2015) on the allocation of H. fuliginosus in Hypostomini.

For the four populations of H. fuliginosus, single NORs (Ag- and 18S rDNA-FISH) were observed. However, the population from Antas River showed a polymorphism concerning the location of these sites, with three different phenotypes: terminal/terminal (t/t), interstitial/terminal (i/t), and interstitial/interstitial (i/i). This polymorphism can be attributed to the occurrence of a paracentric inversion. Possibly for the population of H. fuliginosus from Antas River, the presence of heterochromatin coinciding with these regions would have facilitated the occurrence of the paracentric inversion that originated the variant phenotypes. An essential tool to understand the mechanisms involved in the evolutionary process of the fish group is to verify the composition and distribution pattern of heterochromatin, as it has been suggested that heterochromatin plays a relevant role in the occurrence of chromosomal rearrangements (Souza et al., 1996; Molina, Galetti, 2002; Konerat et al., 2014a,b; Bueno et al., 2018).

The number of chromosomes and karyotypic formula found for H. fuliginosus coincides with the four populations analyzed; however, the occurrence of NORs polymorphism is exclusive in the Antas River population, suggesting isolation of this population from the others. Although terminal NORs (t) occur more frequently in this population [f(t) = 0.7], the occurrence of Hardy-Weinberg Equilibrium (Tab. 1) suggests a neutral effect of these cytotypes and the absence of genetic flow with the other populations, probably due to the geomorphological characteristics of the Antas River, such as its slope and alternation of low to high depth stretches. The results also suggest that the Uruguai River does not constitute a barrier that could restrict the gene flow between the other populations of the upper and middle Uruguai River. The upper Uruguai River is steep and has fast waters, with flooding between June and October, although significant annual variations in water levels can be observed. The middle Uruguai River shows an average fall and some rapids, while the lower Uruguai River has a total fall of less than one meter. The Uruguai River regions have considerably different hydrological conditions (Zaniboni-Filho, Schulz, 2003).

Hemiancistrus fuliginosus is endemic to the Uruguai River basin (Miquelarena, López, 2004; Lujan et al., 2015). It was also recorded as an accessory or occasional species in the Uruguai River, characterized by the diversity of habitats with a rocky bottom and many rapids (Hahn, 2000; Hahn et al., 2011), characteristics that may have allowed contact between populations since they preferentially inhabit lotic environments with rapids and rocky substrates (Agostinho et al., 2003). The reproductive biology of Hemiancistrus, evidenced by studies with H. punctulatus, shows that they occupy fairly varied reproduction sites, however incipient in streams; present total spawning and reproductive peak occurring from November to January, with parental care. They are sedentary, with a preferred depth between 0.5 and 5 m. However, it was observed that young individuals occupy shallow and stream habitats while adults generally explore the river (Luz-Agostinho et al., 2010; Hirschmann et al., 2011). In this way, species of the genus can be found in different habitats, occasionally or incidentally. During the dry season, the Uruguai River presents a drastic reduction in the volume of water, with the formation of environments characteristic of those inhabited by H. fuliginosus in its tributaries. Cytogenetic studies performed by Yano et al. (2014) in populations of Psalidodon paranae (Eigenmann, 1914), P. fasciatus (Cuvier, 1819), and Astyanax lacustris (Lütken, 1875) (cited as A. altiparanae Garutti & Britski, 2000) from two tributary streams of the São Francisco River (upper Paraná River basin) with 36 km of distance from mouth to mouth, verified karyotypic differences between populations for P. paranae and P. fasciatus, and absence for A. altiparanae. The authors attribute that the São Francisco River channel acted as an ecological barrier for the populations of P. paranae and P. fasciatus, but not for A. altiparanae.

Cytogenetic data obtained from these populations corroborate the allocation of H. fuliginosus in Hypostomini, showing an increase in diploid number when compared to Pterygoplichthys, but lower diploid numbers than Hypostomus. The exclusivity of NORs polymorphism detected in the population of H. fuliginosus from Antas River can be explained by the geomorphological characteristics of the river, preventing gene flow between populations. The karyotypic similarities detected between the populations of H. fuliginosus from the Cascalho Stream, the Ijuí River, and the Potiribu River can be attributed to the presence of similar habitats existing between the tributaries and the Uruguai River itself in the dry season, not showing full restriction of the interpopulation gene flow.

Acknowledgments​

The authors are grateful to the Ministério do Meio Ambiente and the Instituto Chico Mendes de Conservação da Biodiversidade (MMA/ICMBio) for authorizing the capture of the fish. The authors are grateful to UNIOESTE fur logistical support. This study was supported by Fundação Araucária de Apoio ao Desenvolvimento Científico e Tecnológico do estado do Paraná, Coordenação de Aperfeiçoamento de Pessoal de Nível Superior (CAPES), and Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq).

References​

Abell R, Thieme ML, Revenga C, Bryer M, Kottelat M, Bogutskaya N et al. Freshwater ecoregions of the world: a new map of biogeographic units for freshwater biodiversity conservation. BioScience. 2008; 58(5):403–14. https://doi.org/10.1641/B580507

Agostinho AA, Latini JD, Luz KDG, Gomes LC. A ictiofauna do rio das Antas, área de influência do Complexo Energético Rio das Antas.Maringá: CERAN, LIMNOBIOS; 2003.

Alves AL, Oliveira C, Foresti F. Karyotype variability in eight species of the subfamilies Loricariinae and Ancistrinae (Teleostei, Siluriformes, Loricariidae). Caryologia. 2003; 56(1):57–63. https://doi.org/10.1080/00087114.2003.10589308

Alves AL, Oliveira C, Nirchio M, Granado A, Foresti F. Karyotypic relationships among the tribes of Hypostominae (Siluriformes: Loricariidae) with description of X0 sex chromosome system in a Neotropical fish species. Genetica. 2006;128:1–09. https://doi.org/10.1007/s10709-005-0715-1

Armbruster JW. Phylogenetic relationships of the suckermouth armoured catfishes (Loricariidae) with emphasis on the Hypostominae and the Ancistrinae. Zool J Linn Soc. 2004; 141(1):1–80. https://doi.org/10.1111/j.1096-3642.2004.00109.x

Armbruster JW, Werneke DC, Tan M. Three new species of saddled loricariid catfishes, and a review of Hemiancistrus, Peckoltia, and allied genera (Siluriformes). ZooKeys. 2015; 480:97–123. https://doi.org/10.3897/zookeys.480.6540

Artoni RF, Bertollo LAC. Trends in the karyotype evolution of Loricariidae fish (Siluriformes). Hereditas. 2001; 134(3):201–10. https://doi.org/10.1111/j.1601-5223.2001.00201.x

Baumgartner L, Paiz LM, Zawadzki CH, Margarido VP, Portela-Castro ALB. Heterochromatin polymorphism and physical mapping of 5S and 18S ribosomal DNA in four populations of Hypostomus strigaticeps (Regan, 1907) from the Parana River Basin, Brazil: evolutionary and environmental correlation. Zebrafish. 2014;11(5):479–87. https://doi.org/10.1089/zeb.2014.1028

Bertaco VA, Ferrer J, Carvalho FR, Malabarba LM. Inventory of the freshwater fishes from a densely collected area in South America – a case study of the current knowledge of Neotropical fish diversity. Zootaxa. 2016; 4138 (3):401–40. https://doi.org/10.11646/zootaxa.4138.3.1

Bertollo LAC, Takahashi CS, Moreira-Filho O. Cytotaxonomic considerations on Hoplias lacerdae (Pisces, Erythrinidae). Braz J Genet. 1978; 1:103–20.

Bueno V, Zawadzki CH, Margarido VP. Trends in chromosome evolution in the genus Hypostomus Lacépède, 1803 (Osteichthyes, Loricariidae): a new perspective about the correlation between diploid number and chromosomes types. Rev Fish Biol Fish. 2012; 22: 241–50. https://doi.org/10.1007/s11160-011-9215-9

Bueno V. Análise citogenética em espécies de Hypostominae (Osteichthyes, Loricariidae) da bacia dos rios Uruguai e Paraná: enfoque biogeográfico e filogenético. [PhD Thesis]. Maringá: Universidade Estadual de Maringá; 2014. Available from: http://repositorio.uem.br:8080/jspui/handle/1/6419

Bueno V, Venere PV, Konerat JT, Zawadzki CH, Vicari MR, Margarido VP. Physical mapping of the 5S and 18S rDNA in ten species of Hypostomus Lacépède 1803 (Siluriformes: Loricariidae): evolutionary tendencies in the genus. Sci World J. 2014; 2014(1):943825. https://doi.org/10.1155/2014/943825

Bueno V, Konerat JT, Zawadzki CH, Venere PC, Blanco DR, Margarido VP. Divergent chromosome evolution in Hypostominae tribes (Siluriformes: Loricariidae): correlation of chromosomal data with morphological and molecular phylogenies. Zebrafish. 2018; 15:492–503. https://doi.org/10.1089/zeb.2018.1612

Cardoso YP, Almirón A, Casciotta J, Aichino D, Lizarralde MS, Montoya-Burgos JI. Origin of species diversity in the catfish genus Hypostomus (Siluriformes: Loricariidae) inhabiting the Paraná river basin, with the description of a new species. Zootaxa. 2012; 3453(1):69–83. https://doi.org/10.11646/zootaxa.3453.1.5

Cereali SS, Pomini E, Rosa R, Zawadzki CH, Froehlich O, Giuliano-Caetano L. Karyotype description of two species of Hypostomus (Siluriformes, Loricariidae) of the Planalto da Bodoquena, Brazil. Genet Mol Res. 2008; 7(3):583-91. https://doi.org/10.4238/vol7-3gmr404

Fricke R, Eschmeyer WN, Fong JD. Eschmeyer’s catalog of fishes: genera/species by family/subfamily [Internet]. San Francisco: California Academy of Science; 2024. Available from: https://researcharchive.calacademy.org/research/ichthyology/catalog/SpeciesByFamily.asp

Fernandes AC, Alves DS, Guterres ZR, Martins-Santos IC. Cytogenetic analysis of two locariid species (Teleostei, Siluriformes) from Iguatemi River (Paraná River drainage) in Brazil. Comp Cytogenet. 2015; 9(1):67–78. https://doi.org/10.3897/CompCytogen.v9i1.8804

Griffiths SP. The use of clove oil as an anaesthetic and method for sampling intertidal rockpool fishes. J Fish Biol. 2000; 57(6):1453–64. https://doi.org/10.1111/j.1095-8649.2000.tb02224.x

Hahn L, Camara LF. Ictiofauna do rio Uruguai: pesquisas e impactos. Bol Soc Bras Ictiol. 2000; 58:9–11.

Hahn L. Diversidade, composição da ictiofauna e aspectos da biologia de Salminus maxillosus e Prochilodus lineatus do rio Uruguai superior, entre Mondaí e Itapiranga, Santa Catarina, Brasil. [Master Dissertation]. Maringá: Universidade Estadual de Maringá; 2000.

Hahn L, Agostinho AA, English KK, Carosfeld J, Câmara LF, Cooke SJ. Use of radiotelemetry to track threatened dourados Salminus brasiliensis in the upper Uruguay River, Brazil. Endang Species Res. 2011; 15:103–14. https://doi.org/10.3354/esr00363

Hatanaka T, Galetti Jr. PM. Mapping 18S and 5S ribosomal RNA genes in the fish Prochilodus argenteus Agassiz, 1929 (Characiformes, Prochilodontidae). Genetica. 2004; 122:239–44. https://doi.org/10.1007/s10709-004-2039-y

Hirschmann A, Fialho CB, Grillo HCZ. Reprodução de Hemiancistrus punctulatus Cardoso & Malabarba, 1999 (Siluriformes: Loricariidae) no sistema da laguna dos Patos: uma espécie de ambiente lótico frente às alterações provocadas por represamentos. Neotrop Biol Conserv. 2011; 6(3):250–57. https://doi.org/10.4013/nbc.2011.63.10

Howell WM, Black DA. Controlled silver-staining of nucleolus organizer regions with a protective colloidal developer: a 1-step method. Experientia. 1980; 36:1014–15. https://doi.org/10.1007/BF01953855

Konerat JT, Bueno V, Baumgartner L, Martins-Santos IC, Margarido VP. B chromosome and NORs polymorphism in Callichthys callichthys (Linnaeus, 1758) (Siluriformes: Callichthyidae) from upper Paraná River, Brazil. Neotrop Ichthyol. 2014b; 12(3):603–09. https://doi.org/10.1590/1982-0224-20130189

Konerat JT, Bueno V, Martins-Santos IC, Margarido VP. Karyotypic diversity and chromosome evolution in the armored catfishes Callichthyinae (Siluriformes, Callichthyidae). Caryologia. 2014a; 67(2):140–48. https://doi.org/10.1080/00087114.2014.931635

Latrubesse ED, Stevaux JC, Santos ML Assine ML. Grandes Sistemas fluviais: geologia, geomorfologia e paleohidrologia. In: Souza CRG, Suguio K, Oliveira AMS, Oliveira PD, editors. Quaternário do Brasil. Ribeirão Preto: Holos; 2005. p.276–94.

Levan A, Fredga K, Sandberg AA. Nomenclature for centromeric position on chromosomes. Hereditas. 1964; 52(2):201–20. https://doi.org/10.1111/j.1601-5223.1964.tb01953.x

Lui RL, Blanco DR, Moreira-Filho O, Margarido VP. Propidium iodide for making heterochromatin more evident in the C-banding technique. Biotech Histochem. 2012; 87(7):433–38. https://doi.org/10.3109/10520295.2012.696700

Lujan NK, Armbruster JW, Lovejoy N, López-Fernández H. Multilocus molecular phylogeny of the suckermouth armored catfishes (Siluriformes: Loricariidae) with a focus on subfamily Hypostominae. Mol Phylogenet Evol. 2015; 82:269–88. https://doi.org/10.1016/j.ympev.2014.08.020

Luz-Agostinho KDGA, Latini JD, Abujanra F, Gomes LC, Agostinho AA. A ictiofauna do rio das Antas, distribuição e bionomia das espécies. Maringá: Clichetec; 2010.

Margarido VP, Moreira-Filho O. Karyotypic differentiation through chromosome fusion and number reduction in Imparfinis hollandi (Ostariophysi, Heptapteridae). Genet Mol Biol. 2008; 31:235–38. https://doi.org/10.1590/S1415-47572008000200012

Mariotto S, Centofante L, Vicari MR, Artoni RF, Moreira-Filho O. Chromosomal diversification in ribosomal DNA sites in Ancistrus Kner, 1854 (Loricariidae, Ancistrini) from three hydrographic basins of Mato Grosso, Brazil. Comp Cytogenet. 2011; 5(4):289–300. https://doi.org/10.3897/CompCytogen.v5i4.1757

Martins C, Galetti Jr. PM. Chromosomal localization of 5S rDNA genes in Leporinus fish (Anostomidae, Characiformes). Chromosome Res. 1999; 7:363–67. https://doi.org/10.1023/A:1009216030316

Miquelarena AM, López HL. Considerations on the ichthyofauna of the Uruguay River basin: Hemiancistrus fuliginosus Cardoso & Malabarba, 1999 (Loricariidae: Ancistrinae). J Appl Ichthyol. 2004; 20:233–37. https://doi.org/10.1111/j.1439-0426.2004.00502.x

Molina WF, Galetti Jr. PM. Robertsonian rearrangements in the reef fish Chromis (Perciformes, Pomacentridae) involving chromosomes bearing 5S rRNA genes. Genet Mol Biol. 2002; 25(4):373–77. https://doi.org/10.1590/S1415-47572002000400004

Muramoto J-I, Ohno S, Atkin NB. On the diploid state of the fish order Ostariophysi. Chromosoma. 1968; 24:59–66. https://doi.org/10.1007/BF00329607

Oliveira RR, Souza IL, Venere PC. Karyotype description of three species of Loricariidae (Siluriformes) and occurrence of the ZZ/ZW sexual system in Hemiancistrus spilomma Cardoso & Lucinda, 2003. Neotrop Ichthyol. 2006; 4(1):93–97. https://doi.org/10.1590/S1679-62252006000100010

Pinkel D, Straume T, Gray JW. Cytogenetic analysis using quantitative, high-sensitivity, fluorescence hybridization. Proc Natl Acad Sci. 1986; 83(9):2934–38. https://doi.org/10.1073/pnas.83.9.2934

Provenzano RF, Barriga SR. The species of Hemiancistrus (Siluriformes: Loricariidae) from Ecuador. Zootaxa. 2017; 4272(2):221–35. https://doi.org/10.11646/zootaxa.4272.2.4

Reis RE, Pereira EHL, Armbruster JW. Delturinae, a new loricariid catfish subfamily (Teleostei, Siluriformes), with revisions of Delturus and Hemipsilichthys. Zool J Linn Soc. 2006; 147(2):277–99. https://doi.org/10.1111/j.1096-3642.2006.00229.x

Ribeiro MO, Ribeiro IPM, Pereira DMC, Dulz TA, Zawadzki CH, Noleto RB et al. Cytogenetic and molecular studies in species of the Ancistrini tribe from Southern Brazil. Neotrop Ichthyol. 2024; 22(1):e230118. https://doi.org/10.1590/1982-0224-2023-0118

Roxo FF, Ochoa LE, Sabaj MH, Lujan NK, Covain R, Silva GSC et al. Phylogenomic reappraisal of the Neotropical catfish family Loricariidae (Teleostei: Siluriformes) using ultraconserved elements. Mol Phylogenet Evol. 2019; 135:148–65. https://doi.org/10.1016/j.ympev.2019.02.017

Schweizer D. Simultaneous fluorescent staining of R bands and specific heterochromatic regions (DA-DAPI bands) in human chromosomes. Cytogenet Cell Genet. 1980; 27(2–3):190–93. https://doi.org/10.1159/000131482

Souza IL, Moreira Filho O, Galetti Jr. PM. Heterochromatin differentiation in the characid fish Astyanax scabripinnis. Braz J Genetics. 1996; 19(3):405–10.

Sumner AT. A simple technique for demonstrating centromeric heterocromatin. Expl Cell Res. 1972; 75(1):304–06. https://doi.org/10.1016/0014-4827(72)90558-7

Yano CF, Moreira-Filho O, Margarido VP. Interpopulational comparative cytogenetics analysis among three Astyanax (Characiformes: Incertae Sedis) species of two streams of upper Paraná River basin, Brazil. Biologia. 2014; 69:790–98. https://doi.org/10.2478/s11756-014-0366-8

Zaniboni-Filho E, Schulz UH. Migratory fishes of the Uruguay River. In: Carolsfeld J, Harvey B, Ross C, Baer A, editors. World fisheries trust and world bank. Ottawa: IDRC; 2003. p.157–94.
