Discriminating Scleromystax barbatus (Siluriformes: Callichthyidae) populations from Atlantic Rainforest streams employing otolith shape

Roger Henrique Dalcin¹ and Vinicius Abilhoa^1,2

PDF: EN    XML: EN | Cite this article

Abstract​

---

Introduction​

---

Atlantic Rainforest rivers and streams harbor a high taxonomic and functional fish fauna diversity (Abilhoa et al., 2011). Many fish species within this biome display restricted distributions, associated to the high number of independent hydrological drainages that arise in high altitudes and flow towards the Atlantic Ocean (Menezes et al., 2007). Both geological and ecological conditions have influenced the unique diversification patterns, genetic population structuring and high number of endemic fish species noted in this region (Torres, Ribeiro, 2009; Thomaz et al., 2015).

The Brazilian Atlantic Rainforest biome is one of the most biologically rich, albeit threatened, biodiversity hotspot (Myers et al., 2000). Despite their wide geographical range throughout the Brazilian coast at almost 30° of latitude, after five centuries of human occupation less than 7% of original forests remain, now comprising only fragments surrounded by open-habitat matrices, such as agricultural and urban landscapes (Ribeiro et al., 2009).

Due to the isolating effect of mountain ranges on the geographic distribution of fishes that occur coastal Atlantic Rainforest rivers, several dispersal-vicariance mechanisms and hypotheses based on headwater stream capture and isolation/connection due to marine transgressions and regressions have been proposed (Ribeiro, 2006; Roxo et al., 2014; Thomaz, Knowles, 2018). Paleodrainage connections between coastal drainages have been used to explain the current distribution and genetic diversity of many fish populations in this region (Lima et al., 2016; Thomaz et al., 2017; Pio, Carvalho, 2021; Souto-Santos et al., 2022).

Species belonging to the Scleromystax Günther, 1864 genus (Siluriformes, Callichthyidae, Corydoradinae), popularly known as banded coridoras, are geographically widespread throughout coastal Atlantic Rainforest rivers (Britto, 2003; Britto et al., 2016). This monophyletic genus includes six species of small armored-catfish, namely S. barbatus (Quoy & Gaimard, 1824), S. macropterus (Regan, 1913), S. prionotos (Nijssen & Isbrücker, 1980), S. salmacis Britto & Reis, 2005, S. reisi Britto, Fukakusa & Malabarba, 2016 and S. virgulatus (Nijssen & Isbrücker, 1980). The banded coridoras S. barbatus exhibits a relatively broad distribution area through coastal rivers basins off southern and southeastern Brazil, from the Paraíba do Sul River basin to the Itapocu River basin (Menezes et al., 2007). This species differs from its congeners by the presence of dark brown blotches, often coalesced, extending from almost the entire dorsolateral body plates towards the base of caudal fin, displaying irregular small dark brown blotches distributed over the head (Oyakawa et al., 2006). It is mostly found in small groups inhabiting shallow stream portions, feeding on benthic invertebrates while moving and probing the substrate (Aranha et al., 1998; Gonçalves, Cestari, 2013). Molecular genetic variations within S. barbatus populations in southern Brazil indicate that this species is an interesting model for phylogeographic studies (Tschá et al., 2017).

Studies concerning evolutionary and biogeographic history effects on Atlantic Rainforest freshwater fish distributions have revealed that many widely distributed species display high genetic divergences (Torres, Ribeiro, 2009; Thomaz et al., 2017; Souza et al., 2018), often with low morphological variations between geographically isolated populations, indicating that the ichthyofauna in this region is much more diverse than previously thought. Therefore, an ongoing need to explore additional methodological approaches to address issues such as species identification, speciation, geographic variation, structured genetic variation, and phylogeny, is paramount (Padial et al., 2010; Garavello et al., 2021; Ibañez et al., 2022).

Otoliths, commonly known as earstones, are calcareous structures positioned in the inner ear of teleost fish, in close association with the sensorial macula, whose main functions comprise hearing and gravity perception (Platt, Popper, 1981). Three pairs of otoliths are present, the sagittae, lapillus, and asteriscus, which in many cases, display a species-specific morphology (Campana, 1999; Mendoza, 2006). The saccular otolith, sagitta, is largest in most teleosts, and the lagenar otolith, asteriscus, is largest in most ostariophysians, while the utricular otolith, lapillus, is usually the most conspicuous otolith in Siluriformes (Platt, Popper, 1981; Assis, 2003). Although otolith appearance and shape indicate high levels of morphological differentiation between species (e.g., Popper et al., 2005; Deng et al., 2013; Volpedo, Vaz-dos-Santos, 2015), intraspecific variations may occur according to sex (e.g., Bose et al., 2017; Maciel et al., 2019), growth (e.g., Lombarte, Castellón, 1991; Bose et al., 2018), geography (e.g., Stransky et al., 2008; Treinen-Crespo et al., 2012) and environmental factors (e.g., Lombarte, Lleonart, 1993; Schulz-Mirbach et al., 2011).

Otolith morphological, morphometric and shape analyses have increasingly been applied as tools in stock assessments (Paul et al., 2013; Hüssy et al., 2016; Morawicki et al., 2022), ecological studies (Schulz-Mirbach et al., 2011; Tuset et al., 2016) and species discrimination (Popper et al., 2005; Deng et al., 2013; Mereles et al., 2021), evaluating intra- and inter-specific variability between different populations. Thus, the specific aim of our study was to provide an in-depth appraisal of the value of a lapillus otolith shape analysis to examine sexual-based dimorphism and for the identification of divergences among isolated Scleromystax barbatus populations from coastal Atlantic Rainforest streams.

Material and methods

---

Study area. Scleromystax barbatus individuals were sampled in eight clear-water streams encompassing the southern (VR, GR, DM, CU, and PE locations) and southeastern (AR, PM, and AE locations) distribution of the species in the Atlantic Rainforest biome (Fig. 1), between 2019 and 2021, employing electrofishing and seine nets. Voucher specimens were deposited in the fish collection of the Museu de História Natural Capão da Imbuia (MHNCI) (Tab. 1).

FIGURE 1| Locations where Scleromystax barbatus populations were sampled in clear-water streams of the coastal Atlantic Rainforest biome. Red symbols represent the southern locations (VR, GR, DM, CU, and PE) and blue symbols indicate the southeastern locations (AR, PM, and AE).

TABLE 1 | Locations, number of females and males of Scleromystax barbatus, total length (mean ± SD) of individuals and vouchers of samplings conducted in the coastal Atlantic Rainforest biome.

Region	Location	Municipality/State	Stream	Coordinates	Females	Males	TL (mean ± SD)	Voucher
Southeastern (Se)	AR	Angra dos Reis/RJ	Ariró	22°54’07.33”S 44°20’46.56”W	3	9	55.0 ± 0.61	MHNCI 12735
	PM	Caraguatatuba/SP	Pereque-Mirim	23°43’33.51”S 45°26’14.10”W	4	8	50.5 ± 0.40	MHNCI 12827
	AE	Itariri/SP	Aerado	24°17’51.31”S 47°08’47.83”W	6	7	52.2 ± 0.59	MHNCI 12734
Southern (S)	VR	Jacupiranga/SP	Unamed	25°05’57.35”S 48°11’40.67”W	7	5	49.7 ± 0.30	MHNCI 12828
	GR	Guaraqueçaba/PR	Guaraqueçaba	25°15’49.11”S 48°18’35.24”W	4	8	52.0 ± 0.81	MHNCI 12829
	DM	Paranaguá/PR	Do Meio	25°24’11.27”S 48°52’23.54”W	7	3	49.9 ± 0.62	MHNCI 12830
	CU	Joinville/SC	Cubatão Norte	26°13’21.76”S 48°53’49.48”W	8	4	52.8 ± 0.33	MHNCI 12831
	PE	Barra do Sul/SC	Pernambuco	26°23’19.60”S 48°40’55.94”W	8	2	47.4 ± 0.51	MHNCI 12736

Data collection. Total lengths (TL; mm) were determined and otoliths were extracted from each specimen, washed, and stored dry before subsequent analyses. To reduce the effect of ontogenetic otolith changes, analyses were performed only for adult fish ranging from 4.0 to 8.0 cm TL. For the morphological analyses, the left lapillus otoliths of 93 individuals of S. barbatus, whereby 47 originated from females and 46 from males, were placed with the macular hump facing up (ventral surface), and with the anterior extreme pointing left. Two-dimensional digital images were recorded using a Leica® M205 C stereomicroscope using 16.0x objective coupled with a digital camera MC170 HD (Leica®) (magnification 160x), employing the LAS 4.8.0 software (Leica®) using reflected light with a dark background.

Data analysis. The lapillus otoliths were described according to Adams (1940) and Assis (2005). Otolith image analyses were performed in the shapeR package (Libungan, Pálsson, 2015) available in R environment (R Development Core Team, 2021). Otolith outlines and shape coefficients were assessed employing normalized elliptic Fourier transform and Wavelet functions. For all analyses, male and females of S. barbatus were grouped according to the location of capture: southern (VR, GR, DM, CU, and PE) and southeastern (AR, PM, and AE) distribution in the Atlantic Rainforest biome.

The Elliptic Fourier analysis provides information concerning overall differences in otolith shape, describing and characterizing outlines in a quantifiable manner (Lestrel, 1997). The method fitted a number of harmonic functions to capture crenulations and lobes on the otolith edges (Tracey et al., 2006). The Wavelet method is useful for detecting shape differences at specific regions, which may be located at a given angle on the otolith outline (Libungan, Pálsson, 2015). The Wavelet method fits a series of approximating functions within restricted domains to quantify the outline shapes (Graps, 1995), and has been proven an adequate method to detect inter- and intraspecific differences (Tuset et al., 2021). Prior to the shape analyses, the outlines of each image were smoothed to remove the high frequency of pixel noise around the otolith contour using the smoothout function with 100 iterations.

The Fourier/Wavelet coefficients were standardized by fish length (Libungan, Pálsson, 2015), and the otolith shape of S. barbatus was reconstructed using the mean Fourier/Wavelet coefficients and plotted using the ‘plotFourierShape’ and ‘plotWaveletShape’ functions, respectively (Libungan, Pálsson, 2015). Prior to the analysis concerning inter-population differences (males/females and southern/southeastern groups), five Fourier and Wavelet coefficients that did not meet normality (Shapiro-Wilk’s tests) and homoscedasticity (Levene’s tests) assumptions were removed, totaling 40 Fourier and 50 Wavelet coefficients.

The shape variations among the groups were compared by a Canonical Analysis of Principal coordinates (CAP) applied to the Fourier/Wavelet coefficients using the capscale function available in the vegan package (Oksanen et al., 2013)The ordination of the population’s averages along the first two canonical axes was evaluated graphically with shape descriptors. An ANOVA-like permutation test for the CAP was applied to assess the significance of constraints employing 1000 permutations. A minimum of 0.01% was adopted as the significance level. All statistical analyses were performed in the R environment (R Development Core Team, 2021).

Results​

---

The lapillus otoliths of S. barbatus display an elongation in the superior-inferior axis, with uneven wavy bottom edges, while the gibbus maculae is large, prominent, occupying much of the surface of the otolith and the sulcus is short, wide and contours the inner gibbus maculae region (Fig. 2). The ANOVA-like permutation test for the Fourier/Wavelet coefficients indicated significant differences between otoliths of males of Scleromystax barbatus from southern and southeastern areas in the Atlantic Rainforest biome, and also between otoliths of males from southeastern areas and females of southern areas of the Atlantic Rainforest biome (Tab. 2).

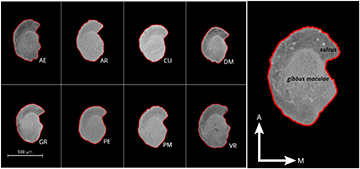

FIGURE 2| Ventral view of the left lapillus otoliths of Scleromystax barbatus from streams in the southern (VR, GR, DM, CU, and PE) and southeastern (AR, PM, and AE) regions of the Atlantic Rainforest biome. A (Anterior), M (Medial).

TABLE 2 | Analysis of variance (ANOVA-like) permutation tests for Fourier and Wavelet coefficients of otolith shape among males and femalesof Scleromystax barbatus from southern and southeastern areas in the Atlantic Rainforest biome. Bold numbers denote significant differences (considering F and p-values). DF = Degree of freedom, SS = Sum of squares. SeFe (Females from the southeastern region), SeMa (Males from the southeastern region), SFe (Females from the southern region), SMa (Males from the southern region).

Variables	DF	Fourier			Wavelet
		SS	F	P	SS	F	P
All groups	3	0.027	1.9393	0.024	5.178	1.8634	0.027
Southeastern (Se) vs. Southern (S)	1	0.008	2.3115	0.039	3.908	4.5173	0.003
Female (Fe) vs. Male (Ma)	1	0.002	0.4975	0.765	0.332	0.3593	0.944
SeFe vs. SMa	1	0.002	0.3212	0.902	0.451	0.4431	0.862
SeFe vs. SFe	1	0.009	2.2639	0.061	1.890	2.0973	0.059
SeFe vs. SMa	1	0.013	2.0781	0.073	2.293	2.0503	0.063
SeMa vs. SFe	1	0.011	3.1020	0.014	2.281	2.8054	0.014
SeMa vs. SMa	1	0.015	2.9842	0.015	2.954	3.1036	0.010
SFe vs. SMa	1	0.003	0.7711	0.544	0.492	0.5679	0.780
Residual	89	0.406			82.432

The Fourier and Wavelet reconstructions showed differences among the mean otolith outlines between the southern and southeastern areas (Fig. 3). The highest variation was observed for the extremum anterior, the posterior region and medial regions of the sulcus. Otoliths from the southeastern areas are more elongated in these portions, mainly in the Wavelet reconstruction. Conversely, high overlaps in the lateral sulcus and in the lateral and medial gibbus maculae regions were observed.

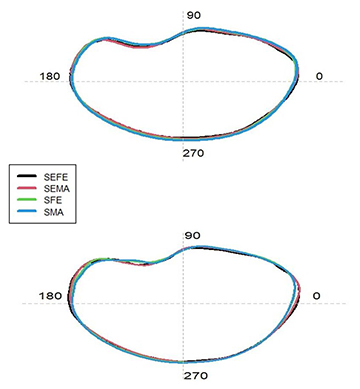

FIGURE 3| Mean otolith shape based on the Fourier (above) and Wavelet (below) reconstructions for males and females of Scleromystax barbatus from southern and southeastern regions in the Atlantic Rainforest biome. Lines represent the groups: SeFe (Females from the southeastern region), SeMa (Males from the southeastern region), SFe (Females from the southern region), SMa (Males from the southeastern region).

The CAP assessments indicated that otolith shape was not homogeneous among the southern and southeastern regions, for both coefficients (ANOVA-like, P < 0.01). The first two principal coordinates axes explained 94.4% of the total Fourier coefficient variation and 94.3% of the Wavelet coefficient variation (Fig. 4).

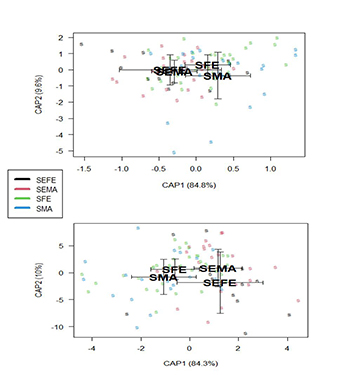

FIGURE 4| Otolith shapes of males and females of Scleromystax barbatus from southern and southeastern regions in the Atlantic Rainforest biome employing a Canonical Analysis of Principal Coordinates (CAP) applied to Fourier (above) and Wavelet (below) coefficients. Bold letters represent the mean canonical coordinates surrounding the standard error for each population. Lines represent the groups: SeFe (Females from the southeastern region), SeMa (Males from the southeastern region), SFe (Females from the southern region), SMa (Males from the southeastern region).

Discussion​

---

The morphologies of Scleromystax barbatus lapillus otolith are very characteristic and can be effectively assign to lapillus otolith of most Callichthyidae family (Volpedo, Fuchs, 2010). Although it is not possible to establish a morphological pattern for the otoliths of Siluriformes (Cutrim, Batista, 2005; Volpedo, Fuchs, 2010; Sánchez, Martínez, 2017), due to the great diversity of this monophyletic group (Malabarba, Malabarba, 2019) and phenotypic plasticity (Alexandrou et al., 2011; Lujan, Armbruster, 2012), the lapillus otoliths analyzed in the present study correspond to the non-clupeiform type proposed by Assis (2005). Furthermore, the prominent and large gibbus maculae and the elongation noted in its posterior-anterior axis correspond to the ovoid model proposed by Sánchez, Martínez (2017) for the Loricariidae lapillus.

Among the three pairs of otoliths, the lapillus is the one that presents the most regular edge shape and the most homogeneous structure constitution, indicating that geometric morphometry and shape indices are less efficient, due to the difficulty in finding comparable (homologous) structures (Assis, 2005; Adams et al., 2009; Tuset et al., 2021). For this reason, the use of contour analyses is more indicated for this type of otolith, as these methodologies are more efficient to capture all small otolith silhouette variations (Mereles et al., 2021; Tuset et al., 2021). In fact, Fourier and Wavelet analyzes were proven efficient in identifying different S. barbatus groups, with Wavelet descriptors proving slightly more sensitive to capture these variations through canonical and ANOVA analyses. Similar results have been reported by other studies for lapillus using shape analyses (Pavlov, 2022; Qiao et al., 2022; D’Iglio et al., 2023).

Reconstruction of otolith shapes employing Fourier and Wavelet analyses indicates that changes in S. barbatus otolith shapes occur mainly in the anterior-posterior direction and at the edges of the sulcus and gibbus maculae regions. The otoliths of males and females of S. barbatus from the southeastern areas in the Atlantic Rainforest biomeare more elongated in the anterior-posterior direction and present larger sulcus and gibbus maculae regions, and their borders are more heterogeneous when compared to males and females from the southern areas.

Otolith shapes have been proven an efficient tool to identify marine and estuarine fish populations (Cardinale et al., 2004; Boudinar et al., 2016; Bose et al., 2017; Adelir-Alves et al., 2018; Zarei et al., 2023), assisting in the management of species used as fishing resources (Avigliano et al., 2014; Moreira et al., 2019; Kikuchi et al., 2021; Neves et al., 2021; Ibañez et al., 2022; Morawicki et al., 2022; Soeth et al., 2022; Barnuevo et al., 2023; Franco et al., 2023), and also used to explain the current distribution of many species, although few studies on neotropical fish employing otolith shape to distinguish populations are available (da Costa et al., 2018; Mereles et al., 2021). As for marine and estuarine fish, our results indicate that assessments of otolith shape also constitute an interesting tool to differentiate isolated populations of freshwater fish.

Although the factors that determine otolith shapes are not fully understood, as they can be generated and influenced by ontogeny, adaptations, sexual dimorphism, phylogenetic and biogeographical processes (Tuset et al., 2016), the combination of genetic and environmental causes may be responsible for the differentiation of the otolith shapes in geographically isolated populations (Cardinale et al., 2004; Vignon, Morat, 2010; Berg et al., 2018; Santos, Vaz-dos-Santos, 2023). Differences observed in the otolith shapes of S. barbatus can therefore be attributed to regional variations in fish life history mediated by differences in environmental factors between the southern and southeastern areas in the Atlantic Rainforest biome, for instance. The combination of these factors may explain otolith shape differences among the investigated S. barbatus populations, which despite being restricted to coastal Atlantic Rainforest streams, is widely distributed (Reis, 2003; Oyakawa et al., 2006), inhabiting regions presenting different climatic conditions. Our results also indicate that sex may not be the determining factor for differentiation between otoliths of S. barbatus, although this species presents marked sexual dimorphism (Oyakawa et al., 2006).

The otolith shape analysis applied herein was efficient in geographically discriminating the sampled groups and may contribute to a better understanding of the current S. barbatus distribution in the Atlantic Forest. However, additional studies are required to investigate the influence of genetic effects and their environmental interactions to better understand how these factors can affect otolith shape among different S. barbatus populations.

Acknowledgments​

---

We are grateful to Adriano Hauer, Axel M. Katz, Thiago T. Batista for the aid in field collections. We also thank the Laboratory of Evolutionary Genetics (LabGEv), especially Roberto F. Artoni, for allowing us to use his photographic equipment. Coordenação de Aperfeiçoamento de Pessoal de Nível Superior (CAPES); through a doctoral scholarship to RHD under VA supervision respectively.

References​

---

Abilhoa V, Braga RR, Bornatowski H, Vitule JRS. Fishes of the Atlantic Rain Forest streams: ecological patterns and conservation. In: Grillo O, Venora G, editors. Changing diversity in changing environment. Croatia; 2011. p.259–82.

Adams DC, Rohlf FJ, Slice DE. Geometric morphometrics: Ten years of progress following the ‘revolution’. Italian J Zool. 2009; 71(1):5–16. https://doi.org/10.1080/11250000409356545

Adams LA. Some characteristic otoliths of American Ostariophysi. J Morphol. 1940; 66(3):497–527. https://doi.org/10.1002/jmor.1050660307

Adelir-Alves J, Daros FALM, Spach HL, Soeth M, Correia AT. Otoliths as a tool to study reef fish population structure from coastal islands of South Brazil. Mar Biol Res. 2018; 14(9–10):973–88. https://doi.org/10.1080/17451000.2019.1572194

Alexandrou MA, Oliveira C, Maillard M, Mcgill RAR, Newton J, Creer S et al. Competition and phylogeny determine community structure in Müllerian co-mimics. Nature. 2011; 469:84–88. https://doi.org/10.1038/nature09660

Aranha JMR, Takeuti DF, Yoshimura TM. Habitat use and food partitioning of the fishes in a coastal stream of Atlantic Forest, Brazil. Rev Biol Trop. 1998; 46(4):951–59. Available from: http://www.scielo.sa.cr/scielo.php?script=sci_arttext&pid=S0034-77441998000400008&lng=en&nrm=iso

Assis CA. The lagenar otoliths of teleosts: their morphology and its application in species identification, phylogeny and systematics. J Fish Biol. 2003; 62(6):1268–95. https://doi.org/10.1046/J.1095-8649.2003.00106.X

Assis CA. The utricular otoliths lapilli of teleosts: Their morphology and relevance for species identification and systematics studies. Sci Mar. 2005; 69(2):259–73. https://doi.org/10.3989/scimar.2005.69n2259

Avigliano E, Martinez CFR, Volpedo AV. Combined use of otolith microchemistry and morphometry as indicators of the habitat of the silverside (Odontesthes bonariensis) in a freshwater-estuarine environment. Fish Res. 2014; 149:55–60. https://doi.org/10.1016/j.fishres.2013.09.013

Barnuevo KDE, Morales CJC, Calizo JKS, Delloro ES, Añasco CP, Babaran RP et al. Distinct stocks of the redtail scad Decapterus kurroides Bleeker, 1855 (Perciformes: Carangidae) from the Northern Sulu and Southern Sibuyan Seas, Philippines revealed from otolith morphometry and shape analysis. Fishes. 2023; 8(1):12. https://doi.org/10.3390/fishes8010012

Berg F, Almeland OW, Skadal J, Slotte A, Andersson L, Folkvord A. Genetic factors have a major effect on growth, number of vertebrae and otolith shape in Atlantic herring (Clupea harengus). PLoS ONE. 2018; 13(1):1–16. https://doi.org/10.1371/journal.pone.0190995

Bose APH, Adragna JB, Balshine S. Otolith morphology varies between populations, sexes and male alternative reproductive tactics in a vocal toadfish Porichthys notatus. J Fish Biol. 2017; 90(1):311–25. https://doi.org/10.1111/jfb.13187

Bose APH, McCallum ES, Raymond K, Marentette JR, Balshine S. Growth and otolith morphology vary with alternative reproductive tactics and contaminant exposure in the round goby Neogobius melanostomus. J Fish Biol. 2018; 93(4):674–84. https://doi.org/10.1111/jfb.13756

Boudinar AS, Chaoui L, Quignard JP, Aurelle D, Kara MH. Otolith shape analysis and mitochondrial DNA markers distinguish three sand smelt species in the Atherina boyeri species complex in western Mediterranean. Estuar Coast Shelf Sci. 2016; 182:202–10. https://doi.org/10.1016/J.ECSS.2016.09.019

Britto MR. Phylogeny of the subfamily Corydoradinae Hoedeman, 1952 (Siluriformes: Callichthyidae), with a definition of its genera. Proc Acad Nat Sci Phila. 2003; 153(1):119–54. https://doi.org/10.1635/0097-3157(2003)153[0119:POTSCH]2.0.CO;2

Britto MR, Fukakusa CK, Malabarba LR. New species of Scleromystax Günther, 1864 (Siluriformes: Callichthyidae) – extending the meridional distribution of genera endemic to the Atlantic Forest. Neotrop Ichthyol. 2016; 14(3):e150158. https://doi.org/10.1590/1982-0224-20150158

Campana SE. Chemistry and composition of fish otoliths: pathways, mechanisms and applications. Mar Ecol Prog Ser. 1999; 188:263–97. https://doi.org/10.3354/meps188263

Cardinale M, Doering-Arjes P, Kastowsky M, Mosegaard H. Effects of sex, stock, and environment on the shape of known-age Atlantic cod (Gadus morhua) otoliths. Can J Fish Aquat Sci. 2004; 61(2):158–67. https://doi.org/10.1139/f03-151

da Costa RMR, Fabré NN, Amadio SA, Tuset VM. Plasticity in the shape and growth pattern of asteriscus otolith of black prochilodus Prochilodus nigricans (Teleostei: Characiformes: Prochilodontidae) freshwater neotropical migratory fish. Neotrop Ichthyol. 2018; 16(4):e180051. https://doi.org/10.1590/1982-0224-20180051

Cutrim L, Batista VS. Determinação de idade e crescimento do mapará (Hypophthalmus marginatus) na Amazônia Central. Acta Amaz. 2005; 35:85–92. https://doi.org/10.1590/S0044-59672005000100013

D’Iglio C, Famulari S, Albano M, Carnevale A, Di Fresco D, Costanzo M et al. Intraspecific variability of the saccular and utricular otoliths of the hatchetfish Argyropelecus hemigymnus (Cocco, 1829) from the Strait of Messina (Central Mediterranean Sea). PLoS ONE. 2023; 18(2):e0281621. https://doi.org/10.1371/journal.pone.0281621

Deng X, Wagner H-J, Popper AN. Interspecific variations of inner ear structure in the deep-sea fish family Melamphaidae. Anat Rec. 2013; 296(7):1064–82. https://doi.org/10.1002/ar.22703

Franco TP, Vilasboa A, Araújo FG, Gama JM, Correia AT. Identifying whitemouth croaker (Micropogonias furnieri) populations along the Rio de Janeiro Coast, Brazil, through microsatellite and otolith analyses. Biology. 2023; 12(3):360. https://doi.org/10.3390/biology12030360

Garavello JC, Ramirez JL, Oliveira AK, Britski HA, Birindelli JLO, Galetti Jr. PM. Integrative taxonomy reveals a new species of Neotropical headstanding fish in genus Schizodon (Characiformes: Anostomidae). Neotrop Ichthyol. 2021; 19(4):e210016. https://doi.org/10.1590/1982-0224-2021-0016

Gonçalves C, Cestari C. Uso de riacho costeiro da mata atlântica pelo limpa-fundo Scleromystax barbatus (Quoy & Gaimard, 1824). Neotrop Biol Conserv. 2013; 8(3):115–20. https://doi.org/10.4013/nbc.2013.83.01

Graps A. An introduction to wavelets. IEEE Computational Science and Engineering. 1995; 2(2):50–61. https://doi.org/10.1109/99.388960

Hüssy K, Mosegaard H, Albertsen CM, Nielsen EE, Hemmer-Hansen J, Eero M. Evaluation of otolith shape as a tool for stock discrimination in marine fishes using Baltic Sea cod as a case study. Fish Res. 2016; 174:210–18. https://doi.org/10.1016/J.FISHRES.2015.10.010

Ibañez A, Rangely J, Ávila-Herrera L, Silva VEL, Pacheco-Almanzar E, Neves JMM et al. Unraveling the Mugil curema complex of American coasts integrating genetic variations and otolith shapes. Estuar Coast Shelf Sci. 2022; 273:e107914. https://doi.org/10.1016/j.ecss.2022.107914

Kikuchi E, García S, Costa PAS, Cardoso LG, Haimovici M. Discrimination of red porgy Pagrus pagrus (Sparidae) potential stocks in the south-western Atlantic by otolith shape analysis. J Fish Biol. 2021; 98(2):548–56. https://doi.org/10.1111/jfb.14598

Lestrel PE. Fourier descriptors and their applications in biology. Cambridge University Press; 1997.

Libungan LA, Pálsson S. ShapeR: An R package to study otolith shape variation among fish populations. PLoS ONE. 2015; 10(3):1–12. https://doi.org/10.1371/journal.pone.0121102

Lima SMQ, Vasconcellos A V, Berbel-Filho WM, Lazoski C, Russo CAM, Sazima I et al. Effects of Pleistocene climatic and geomorphological changes on the population structure of the restricted-range catfish Trichogenes longipinnis (Siluriformes: Trichomycteridae). Syst Biodivers. 2016; 14(2):155–70. https://doi.org/10.1080/14772000.2015.1104398

Lombarte A, Castellón A. Interspecific and intraspecific otolith variability in the genus Merluccius as determined by image analysis. Can J Zool. 1991; 69(9):2442–49. https://doi.org/10.1139/z91-343

Lombarte A, Lleonart J. Otolith size changes related with body growth, habitat depth and temperature. Environ Biol Fishes. 1993; 37(3):297–306. https://doi.org/10.1007/BF00004637

Lujan NK, Armbruster JW. Morphological and functional diversity of the mandible in suckermouth armored catfishes (Siluriformes: Loricariidae). J Morphol. 2012; 273(1):24–39. https://doi.org/10.1002/jmor.11003

Maciel TR, Vaz-dos-Santos AM, Barradas JRS, Vianna M. Sexual dimorphism in the catfish Genidens genidens (Siluriformes: Ariidae) based on otolith morphometry and relative growth. Neotrop Ichthyol. 2019; 17(1):e180101. https://doi.org/10.1590/1982-0224-20180101

Malabarba LR, Malabarba MC. Phylogeny and classification of neotropical fish. In: Baldisserotto B, Urbinati EC, Cyrino JEP, editors. Elsevier Inc.; 2019. p.1–19. https://doi.org/10.1016/B978-0-12-815872-2.00001-4

Mendoza RPR. Otoliths and their applications in fishery science. Ribar Croat J Fish. 2006; 64(3):89–102. https://hrcak.srce.hr/8984

Menezes NA, Weitzman SH, Oyakawa OT, Lima FCT, Correa e Castro RM, Weitzman MJ. Peixes de água doce da Mata Atlântica: lista preliminar das espécies e comentários sobre conservação de peixes de água doce neotropicais. São Paulo: Museu de Zoologia da Universidade de São Paulo; 2007.

Mereles MA, Sousa RGC, Barroco LSA, Campos CP, Pouilly M, Freitas CEC. Discrimination of species and populations of the genus Cichla (Cichliformes: Cichlidae) in rivers of the Amazon basin using otolithic morphometry. Neotrop Ichthyol. 2021; 19(4):e200149. https://doi.org/10.1590/1982-0224-2020-0149

Morawicki S, Solimano PJ, Volpedo AV. Unravelling stock spatial structure of silverside Odontesthes argentinensis (Valenciennes, 1835) from the North Argentinian Coast by otoliths shape analysis. Fishes. 2022; 7(4):e155. https://doi.org/10.3390/fishes7040155

Moreira C, Froufe E, Vaz-Pires P, Correia AT. Otolith shape analysis as a tool to infer the population structure of the blue jack mackerel, Trachurus picturatus, in the NE Atlantic. Fish Res. 2019; 209:40–48. https://doi.org/10.1016/j.fishres.2018.09.010

Myers N, Mittermeler RA, Mittermeler CG, Fonseca GAB, Kent J. Biodiversity hotspots for conservation priorities. Nature. 2000; 403(6772):853–58. https://doi.org/10.1038/35002501

Neves J, Silva AA, Moreno A, Veríssimo A, Santos AM, Garrido S. Population structure of the European sardine Sardina pilchardus from Atlantic and Mediterranean waters based on otolith shape analysis. Fish Res. 2021; 243:106050. https://doi.org/10.1016/j.fishres.2021.106050

Oksanen J, Blanchet FG, Kindt R, Legendre P, Minchin PR, O’hara RB et al. Package ‘vegan.’ Community Ecology Package, Version. 2013; 2(9):1–295.

Oyakawa OT, Akama A, Mautari KC, Nolasco JC. Peixes de riachos da Mata Atlântica: nas unidades de conservação do Vale do Rio Ribeira de Iguape no Estado de São Paulo. São Paulo: Neotropica; 2006.

Padial JM, Miralles A, De la Riva I, Vences M. The integrative future of taxonomy. Front Zool. 2010; 7(16). https://doi.org/10.1186/1742-9994-7-16

Paul K, Oeberst R, Hammer C. Evaluation of otolith shape analysis as a tool for discriminating adults of Baltic cod stocks. J Appl Ichthyol. 2013; 29(4):743–50. https://doi.org/10.1111/jai.12145

Pavlov DA. Otolith morphology in gibel carp Carassius gibelio and crucian carp C. carassius (Cyprinidae). J Ichthyol. 2022; 62(6):1067–80. https://doi.org/10.1134/S0032945222060200

Pio NL, Carvalho TP. Evidence on the paleodrainage connectivity during Pleistocene: Phylogeography of a hypoptopomatine endemic to southeastern Brazilian coastal drainages. Neotrop Ichthyol. 2021; 19(2):e200128. https://doi.org/10.1590/1982-0224-2020-0128

Platt C, Popper AN. Fine structure and function of the ear. In: Tavolga WN, Popper AN, Fay RR, editors. Hearing and sound communication in fishes. New York: Springer; 1981. p.3–38. https://doi.org/10.1007/978-1-4615-7186-5_1

Popper AN, Ramcharitar J, Campana SE. Why otoliths? Insights from inner ear physiology and fisheries biology. Mar Freshw Res. 2005; 56(5):497–504. https://doi.org/10.1071/MF04267

Qiao J, Zhu R, Chen K, Zhang D, Yan Y, He D. Comparative otolith morphology of two morphs of Schizopygopsis thermalis Herzenstein, 1891 (Pisces, Cyprinidae) in a headwater lake on the Qinghai-Tibet Plateau. Fishes. 2022; 7(3):9. https://doi.org/10.3390/fishes7030099

R Development Core Team. R: A language and environment for statistical computing. Vienna, Austria: R Foundation for Statistical Computing; 2021. Available from: https://www.r-project.org/

Reis RE. Check list of the freshwater fishes of South and Central America. Porto Alegre: Edipucrs; 2003.

Ribeiro AC. Tectonic history and the biogeography of the freshwater fishes from the coastal drainages of eastern Brazil: An example of faunal evolution associated with a divergent continental margin. Neotrop Ichthyol. 2006; 4(2):225–46. https://doi.org/10.1590/s1679-62252006000200009

Ribeiro MC, Metzger JP, Martensen AC, Ponzoni FJ, Hirota MM. The Brazilian Atlantic Forest: How much is left, and how is the remaining forest distributed? Implications for conservation. Biol Conserv. 2009; 142(6):1141–53. https://doi.org/10.1016/j.biocon.2009.02.021

Roxo FF, Albert JS, Silva GSC, Zawadzki CH, Foresti F, Oliveira C. Molecular phylogeny and biogeographic history of the armored Neotropical catfish subfamilies Hypoptopomatinae, Neoplecostominae and Otothyrinae (Siluriformes: Loricariidae). PLoS ONE. 2014; 9(8):e105564. https://doi.org/10.1371/journal.pone.0105564

Sánchez RO, Martínez VH. Morphological variations of the three otoliths of some species of the family Loricariidae (Ostariophysi: Siluriformes). Neotrop Ichthyol. 2017; 15(1):e160058. https://doi.org/10.1590/1982-0224-20160058

Santos L, Vaz-dos-Santos AM. Insights of otoliths morphology to reveal patterns of teleostean fishes in the Southern Atlantic. Fishes. 2023; 8(1). https://doi.org/10.3390/fishes8010021

Schulz-Mirbach T, Heß M, Plath M. Inner ear morphology in the Atlantic molly Poecilia mexicana – first detailed microanatomical study of the inner ear of a cyprinodontiform species. PLoS ONE. 2011; 6(11):e27734. https://doi.org/10.1371/journal.pone.0027734

Soeth M, Daros FA, Correia AT, Fabré NN, Medeiros R, Feitosa CV et al. Otolith phenotypic variation as an indicator of stock structure of Scomberomorus brasiliensis from the southwestern Atlantic Ocean. Fish Res. 2022; 252:106357. https://doi.org/10.1016/J.FISHRES.2022.106357

Souto-Santos ICA, Jennings WB, Buckup PA. Testing palaeodrainage hypotheses in south-eastern Brazil: phylogeography of the sinistral livebearer fish of the genus Phalloceros (Cyprinodontiformes: Poeciliidae). Zool J Linn Soc. 2022; 197(2):514–31. https://doi.org/10.1093/zoolinnean/zlac030

Souza CS, Costa-Silva GJ, Roxo FF, Foresti F, Oliveira C. Genetic and morphological analyses demonstrate that Schizolecis guntheri (Siluriformes: Loricariidae) is likely to be a species complex. Front Genet. 2018; 9:69. https://doi.org/10.3389/fgene.2018.00069

Stransky C, Baumann H, Fevolden S-E, Harbitz A, Høie H, Nedreaas KH et al. Separation of Norwegian coastal cod and Northeast Arctic cod by outer otolith shape analysis. Fish Res. 2008; 90(1–3):26–35. https://doi.org/10.1016/j.fishres.2007.09.009

Thomaz AT, Knowles LL. Flowing into the unknown: inferred paleodrainages for studying the ichthyofauna of Brazilian coastal rivers. Neotrop Ichthyol. 2018; 16(3):e180019. https://doi.org/10.1590/1982-0224-20180019

Thomaz AT, Malabarba LR, Bonatto SL, Knowles LL. Testing the effect of palaeodrainages versus habitat stability on genetic divergence in riverine systems: Study of a Neotropical fish of the Brazilian coastal Atlantic Forest. J Biogeogr. 2015; 42(12):2389–401. https://doi.org/10.1111/jbi.12597

Thomaz AT, Malabarba LR, Knowles LL. Genomic signatures of paleodrainages in a freshwater fish along the southeastern coast of Brazil: genetic structure reflects past riverine properties. Heredity. 2017; 119(4):287–94. https://doi.org/10.1038/hdy.2017.46

Torres RA, Ribeiro J. The remarkable species complex Mimagoniates microlepis (Characiformes: Glandulocaudinae) from the Southern Atlantic Rain Forest (Brazil) as revealed by molecular systematic and population genetic analyses. Hydrobiologia. 2009; 617(1):157–70. https://doi.org/10.1007/s10750-008-9543-5

Tracey SR, Lyle JM, Duhamel G. Application of elliptical Fourier analysis of otolith form as a tool for stock identification. Fish Res. 2006; 77(2):138–47. https://doi.org/10.1016/J.FISHRES.2005.10.013

Treinen-Crespo C, Villegas-Hernández H, Guillén-Hernández S, Ruiz-Zárate MÁ, González-Salas C. Otolith shape analysis as a tool for population discrimination of the white grunt (Haemulon plumieri) stock in the northern coast of the Yucatán Peninsula, Mexico. REVMAR. 2012; 4:157–68.

Tschá MK, Bachmann L, Abilhoa V, Boeger WA. Past connection and isolation of catchments: The sea-level changes affect the distribution and genetic variability of coastal freshwater fishes. Estuar Coast Shelf Sci. 2017; 190:31–39. https://doi.org/10.1016/j.ecss.2017.02.030

Tuset VM, Otero-Ferrer JL, Gómez-Zurita J, Venerus LA, Stransky C, Imondi R et al. Otolith shape lends support to the sensory drive hypothesis in rockfishes. J Evol Biol. 2016; 29(10):2083–97. https://doi.org/10.1111/JEB.12932

Tuset VM, Otero-Ferrer JL, Siliprandi C, Manjabacas A, Marti-Puig P, Lombarte A. Paradox of otolith shape indices: routine but overestimated use. Can J Fish Aquat Sci. 2021; 78(6):681–92. https://doi.org/10.1139/cjfas-2020-0369

Vignon M, Morat F. Environmental and genetic determinant of otolith shape revealed by a non-indigenous tropical fish. Mar Ecol Prog Ser. 2010; 411:231–41. https://doi.org/10.3354/MEPS08651

Volpedo AV, Fuchs DV. Ecomorphological patterns of the lapilli of Paranoplatense Siluriforms (South America). Fish Res. 2010; 102(1–2):160–65. https://doi.org/10.1016/j.fishres.2009.11.007

Volpedo AV, Vaz-dos-Santos AM. Métodos de estudios con otolitos: principios y aplicaciones. Buenos Aires: CAFP-BA-PIESCI; 2015.

Zarei F, Esmaeili HR, Sadeghi R, Reichenbacher B, Schliewen UK, Abbasi K et al. Phylogeography and population structure of Ponticola gorlap (Teleostei: Gobiidae) in an evolutionary distinctive and ecologically threatened Caspian Sea sub-basin. Aquat Sci. 2023; 85(15):1–13. https://doi.org/10.1007/s00027-022-00913-z

Authors

---

Roger Henrique Dalcin¹ and Vinicius Abilhoa^1,2

^[1]    Programa de Pós-Graduação em Zoologia, Universidade Federal do Paraná. Av. Cel. Francisco H. dos Santos, s/n, Jardim das Américas, 81531-980 Curitiba, PR, Brazil. (RHD) roger_dalcin@hotmail.com (corresponding author).

^[2]    Museu de História Natural Capão da Imbuia, MAPCF/PMC, Rua Prof. Nivaldo Braga, 1369, 82810-080 Curitiba, PR, Brazil. (VA) vinicius.abilhoa@gmail.com.

Authors’ Contribution

---

Roger Henrique Dalcin: Conceptualization, Formal analysis, Methodology, Writing-original draft.

Vinícius Abilhoa: Conceptualization, Formal analysis, Methodology, Supervision, Writing-review and editing.

Ethical Statement​

---

The specimens were collected under a collection permit authorized by Instituto Chico Mendes de Conservação da Biodiversidade (SISBIO 73016).

Competing Interests

---

The author declares no competing interests.

How to cite this article

---

Dalcin RH, Abilhoa V. Discriminating Scleromystax barbatus (Siluriformes: Callichthyidae) populations from Atlantic Rainforest streams employing otolith shape. Neotrop Ichthyol. 2024; 22(1):e230129. https://doi.org/10.1590/1982-0224-2023-0129

Copyright​

---

This is an open access article under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in any medium, provided the original work is properly cited.

Distributed under

Creative Commons CC-BY 4.0

© 2024 The Authors.

Diversity and Distributions Published by SBI
